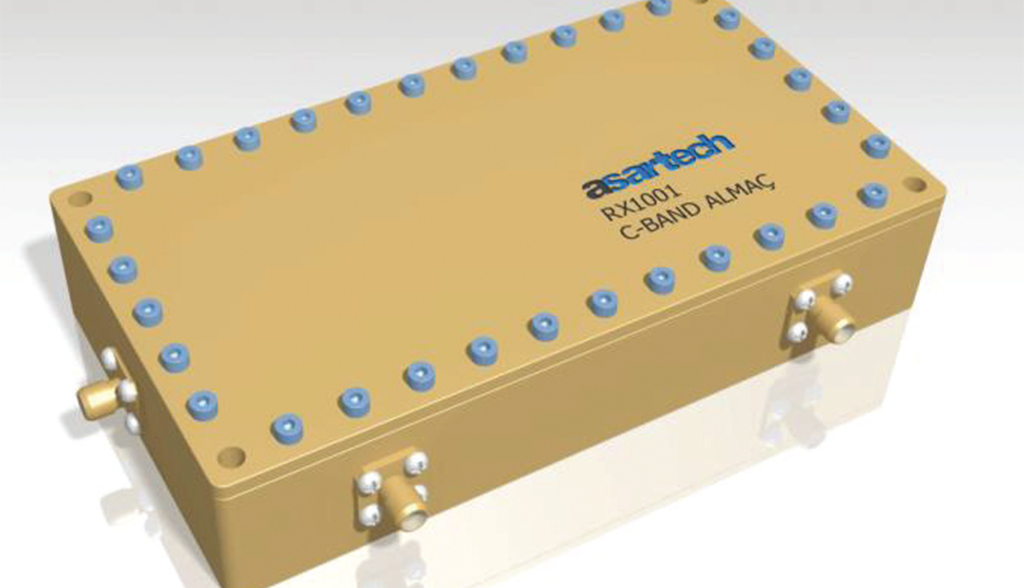

DESCRIPTIONRX1001 is a 2-stage frequency downconverter designed to work in C-band.
RX1001 is a 2-stage frequency downconverter designed to work in C-band. RF input frequency band lies within 5-6GHz and can be customized for the customer. IF output frequency is normally centered at 240MHz and can be similarly customized. IF bandwidth is limited to 60MHz.
Equipped with filtered and low noise LDO regulators, and highly selective filters, harmonic and spurii output are suppressed below -60dBc.
IF output is limited to +10dBm for ADC applications. It can be removed at factory if desired.
